Block Services & Schedules¶

Ferrous DNS ships with a curated catalog of pre-defined services (advertising networks, social media platforms, analytics providers, etc.) that you can block with a single click — per group, with optional time-based scheduling.

How It Works¶

DNS query: graph.facebook.com
         │
         ▼
  1. Identify client group ──► "Kids"
         │
         ▼
  2. Check schedule state ──► is there an active schedule override?
         │                    ├─ BlockAll  → BLOCK immediately
         │                    ├─ AllowAll  → ALLOW immediately
         │                    └─ No override → continue
         ▼
  3. Check blocked services ─► is "facebook" blocked for "Kids"?
         │                     ├─ YES → BLOCK (NXDOMAIN)
         │                     └─ NO  → continue
         ▼
  4. Normal blocking pipeline (blocklists, regex, CNAME cloaking…)

Block Services work on top of the standard Blocking & Filtering pipeline. They add managed domains from the service catalog to the block filter engine — no manual domain lists needed.

Service Catalog¶

The built-in catalog contains hundreds of services organized into categories. Each service maps to a set of domain rules that are maintained and updated automatically.

Categories¶

Category	Examples	Use Case
Advertising	Google Ads, DoubleClick, Facebook Ads, Amazon Ads	Remove ads network-wide
Analytics & Tracking	Google Analytics, Mixpanel, Hotjar, Segment, Amplitude	Reduce tracking
Social Media	Facebook/Instagram, TikTok, Twitter/X, Snapchat, Pinterest, Reddit	Parental controls, productivity
Telemetry	Microsoft telemetry, Apple telemetry, Windows Update telemetry	Privacy
Adult Content	Adult content domains	Parental controls
Gambling	Online gambling platforms	Parental controls, compliance
Video Streaming	Netflix, YouTube, Disney+, Twitch	Bandwidth management, parental controls

Viewing the Catalog¶

DashboardREST API

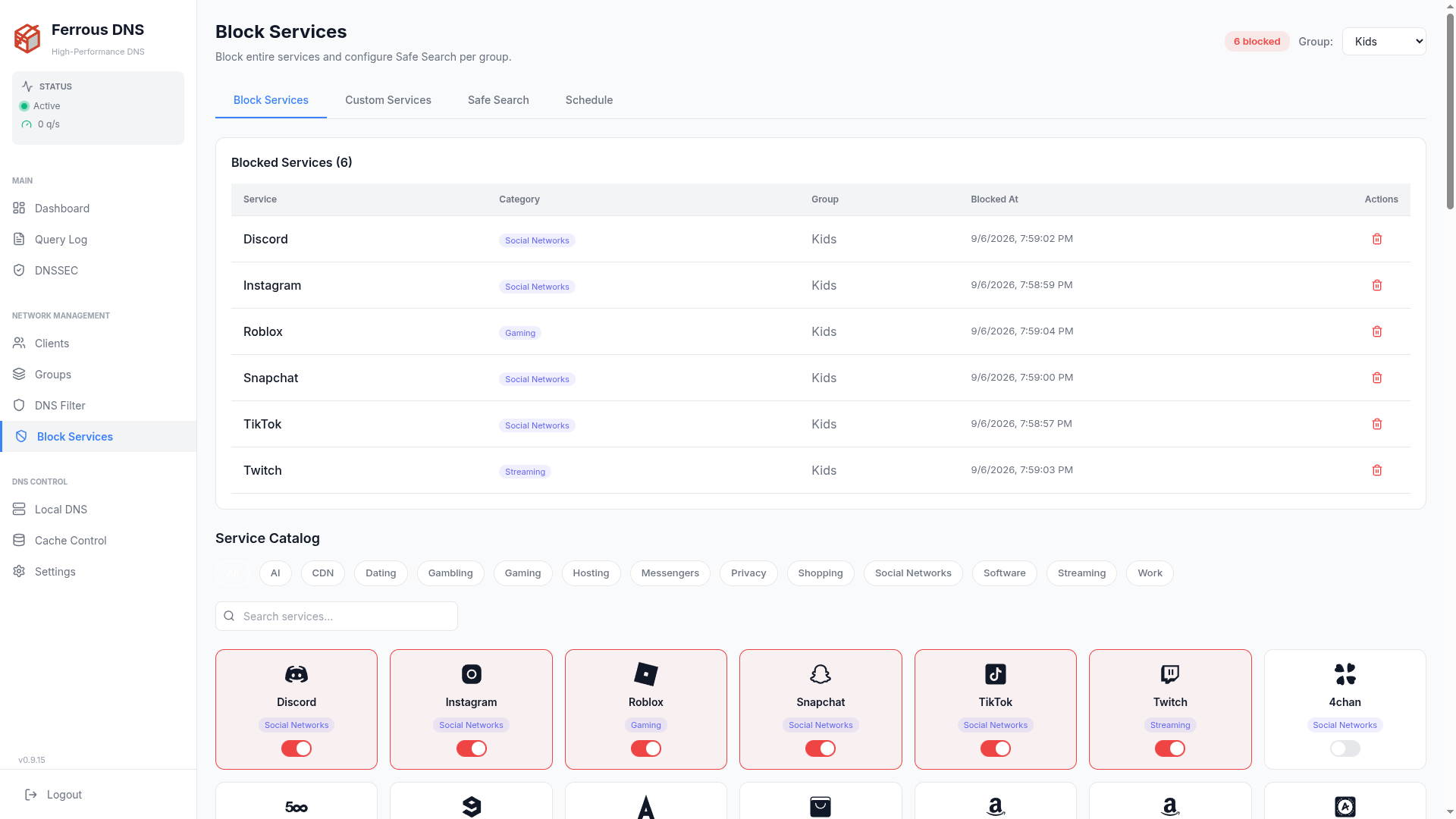

Navigate to Services > Service Catalog tab. Use the category pills to filter and the search bar to find specific services.

# List all services
curl http://localhost:8080/api/services/catalog

# Get a specific service
curl http://localhost:8080/api/services/catalog/google-ads

Response:

{
  "id": "google-ads",
  "name": "Google Ads",
  "category_id": "advertising",
  "category_name": "Advertising",
  "rules": [
    "||googleads.g.doubleclick.net^",
    "||pagead2.googlesyndication.com^",
    "||adservice.google.com^"
  ],
  "is_custom": false
}

Blocking a Service¶

Quick Block (1-Click)¶

DashboardREST API

Go to Services > Service Catalog
Select the target Group from the dropdown (e.g. "Kids")
Click the toggle next to the service you want to block
The service is blocked immediately — no restart needed

# Block Facebook for the "Kids" group (group_id = 2)
curl -X POST http://localhost:8080/api/services \
  -H "Content-Type: application/json" \
  -d '{"service_id": "facebook", "group_id": 2}'

Response (201 Created):

{
  "id": 42,
  "service_id": "facebook",
  "group_id": 2,
  "created_at": "2026-03-09T12:34:56Z"
}

Unblocking a Service¶

DashboardREST API

Go to Services > Blocked Services tab and click the toggle off, or use the Service Catalog tab and toggle the blocked service.

# Unblock Facebook for group 2
curl -X DELETE http://localhost:8080/api/services/facebook/groups/2

Listing Blocked Services¶

# All blocked services for a group
curl http://localhost:8080/api/services?group_id=2

# All blocked services globally
curl http://localhost:8080/api/services

Custom Services¶

If the built-in catalog doesn't cover a service you want to block, create a custom service with your own domain rules.

DashboardREST API

Go to Services > Custom Services tab
Click New Custom Service
Fill in:
- Name: e.g. "Internal Analytics"
- Category: e.g. "Analytics & Tracking"
- Domains: one per line — analytics.internal.com, metrics.internal.com
Click Save
The service now appears in the catalog and can be blocked per group like any built-in service

curl -X POST http://localhost:8080/api/services/custom \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Internal Analytics",
    "category_name": "Analytics & Tracking",
    "domains": [
      "analytics.internal.com",
      "metrics.internal.com",
      "tracking.internal.com"
    ]
  }'

Custom vs. Blocklists

Use Custom Services when you want 1-click per-group control over a set of related domains. Use Blocklists when you have large external lists (thousands of domains) that apply globally. Custom Services are easier to manage for small, targeted blocks.

Per-Group Examples¶

Different groups can have completely independent blocking policies:

Group	Blocked Services	Result
Kids	Social Media, Adult Content, Gambling, Video Streaming	No distractions, age-appropriate
Work	Advertising, Analytics & Tracking	Clean browsing, privacy
IoT	Telemetry, Analytics & Tracking, Advertising	Reduce phone-home traffic
Guest	Adult Content, Gambling	Basic content filtering
Default	(none)	No service blocking, only global blocklists

Default Group

Clients not assigned to any group use the Default group. See Client Management for group setup and client assignment.

Schedule Profiles¶

Schedule Profiles let you control when blocking is active. Assign a schedule to a group and Ferrous DNS automatically enables or disables blocking based on time of day and day of week.

Concepts¶

Concept	Description
Schedule Profile	A named set of time-based rules with a timezone (e.g. "Kids Weeknight")
Time Slot	A rule inside a profile: which days, start time, end time, and action
Action	`block_all` — block every DNS query; `allow_all` — bypass all blocking
Assignment	A profile is assigned to one or more groups

Schedule Profile: "Kids Bedtime"
├── Timezone: America/Sao_Paulo
├── Slot 1: Mon–Thu, 21:00–23:59 → block_all
├── Slot 2: Fri–Sat, 23:00–23:59 → block_all
└── Assigned to: group "Kids" (id=2)

How Evaluation Works¶

The schedule evaluator runs every 60 seconds. For each group with an assigned profile:

Determine the current day and time in the profile's timezone
Check each time slot against the current day (bitmask) and time
If a block_all slot matches → set BlockAll override for the group
If an allow_all slot matches (and no block_all) → set AllowAll override
If no slot matches → remove override (normal blocking rules apply)

Conflict Resolution

If a block_all and allow_all slot overlap for the same time, block_all always wins. This prevents accidental bypasses.

Schedule Examples¶

Example 1: Kids Bedtime¶

Block all internet for children's devices on school nights:

DashboardREST API

Go to Services > Schedule tab
Click New Profile
Name: Kids Bedtime, Timezone: America/Sao_Paulo
Add time slots:

Days	Start	End	Action
Mon, Tue, Wed, Thu	21:00	23:59	Block All
Fri, Sat	23:00	23:59	Block All

Assign to the Kids group

# 1. Create the profile
curl -X POST http://localhost:8080/api/schedule-profiles \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Kids Bedtime",
    "timezone": "America/Sao_Paulo",
    "comment": "Block internet on school nights"
  }'
# Response: { "id": 1, ... }

# 2. Add slot: Mon–Thu 21:00–23:59 (days bitmask: 1+2+4+8 = 15)
curl -X POST http://localhost:8080/api/schedule-profiles/1/slots \
  -H "Content-Type: application/json" \
  -d '{
    "days": 15,
    "start_time": "21:00",
    "end_time": "23:59",
    "action": "block_all"
  }'

# 3. Add slot: Fri–Sat 23:00–23:59 (days bitmask: 16+32 = 48)
curl -X POST http://localhost:8080/api/schedule-profiles/1/slots \
  -H "Content-Type: application/json" \
  -d '{
    "days": 48,
    "start_time": "23:00",
    "end_time": "23:59",
    "action": "block_all"
  }'

# 4. Assign profile to Kids group (group_id = 2)
curl -X PUT http://localhost:8080/api/groups/2/schedule \
  -H "Content-Type: application/json" \
  -d '{"profile_id": 1}'

Example 2: Work Hours Focus¶

Block distracting services during work hours, allow everything outside:

DashboardREST API

Create a profile Work Focus with:

Days	Start	End	Action
Mon–Fri	09:00	18:00	Block All

Assign to the Work group.

# Create profile
curl -X POST http://localhost:8080/api/schedule-profiles \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Work Focus",
    "timezone": "America/Sao_Paulo",
    "comment": "Block distractions during work hours"
  }'

# Add slot: Mon–Fri 09:00–18:00 (days: 1+2+4+8+16 = 31)
curl -X POST http://localhost:8080/api/schedule-profiles/2/slots \
  -H "Content-Type: application/json" \
  -d '{
    "days": 31,
    "start_time": "09:00",
    "end_time": "18:00",
    "action": "block_all"
  }'

# Assign to Work group (group_id = 3)
curl -X PUT http://localhost:8080/api/groups/3/schedule \
  -H "Content-Type: application/json" \
  -d '{"profile_id": 2}'

Example 3: Weekend Allow Window¶

Children's devices are normally blocked, but allow internet on Saturday afternoons:

DashboardREST API

Create a profile Kids Weekend with:

Days	Start	End	Action
Mon–Sun	00:00	23:59	Block All
Sat	14:00	18:00	Allow All

Since block_all wins on conflicts, the allow window only applies during Saturday 14:00–18:00 when no block slot overlaps.

curl -X POST http://localhost:8080/api/schedule-profiles \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Kids Weekend",
    "timezone": "America/Sao_Paulo",
    "comment": "Block everything except Saturday afternoon"
  }'

# Block all week (days: 127 = all days)
curl -X POST http://localhost:8080/api/schedule-profiles/3/slots \
  -H "Content-Type: application/json" \
  -d '{
    "days": 127,
    "start_time": "00:00",
    "end_time": "13:59",
    "action": "block_all"
  }'

curl -X POST http://localhost:8080/api/schedule-profiles/3/slots \
  -H "Content-Type: application/json" \
  -d '{
    "days": 127,
    "start_time": "18:01",
    "end_time": "23:59",
    "action": "block_all"
  }'

# Allow Saturday 14:00–18:00 (days: 32 = Saturday)
curl -X POST http://localhost:8080/api/schedule-profiles/3/slots \
  -H "Content-Type: application/json" \
  -d '{
    "days": 32,
    "start_time": "14:00",
    "end_time": "18:00",
    "action": "allow_all"
  }'

Days Bitmask Reference¶

Time slots use a bitmask to represent days of the week. Combine values with addition:

Day	Bit	Value
Monday	0	1
Tuesday	1	2
Wednesday	2	4
Thursday	3	8
Friday	4	16
Saturday	5	32
Sunday	6	64

Common combinations:

Days	Bitmask	Value
Mon–Fri (weekdays)	`0011111`	31
Sat–Sun (weekend)	`1100000`	96
Every day	`1111111`	127
Mon, Wed, Fri	`0010101`	21
Tue, Thu	`0001010`	10

Managing Schedule Profiles¶

List All Profiles¶

curl http://localhost:8080/api/schedule-profiles

Get Profile with Slots¶

curl http://localhost:8080/api/schedule-profiles/1

Response:

{
  "id": 1,
  "name": "Kids Bedtime",
  "timezone": "America/Sao_Paulo",
  "comment": "Block internet on school nights",
  "created_at": "2026-03-09T12:00:00Z",
  "updated_at": "2026-03-09T12:00:00Z",
  "slots": [
    {
      "id": 1,
      "profile_id": 1,
      "days": 15,
      "start_time": "21:00",
      "end_time": "23:59",
      "action": "block_all",
      "created_at": "2026-03-09T12:00:00Z"
    },
    {
      "id": 2,
      "profile_id": 1,
      "days": 48,
      "start_time": "23:00",
      "end_time": "23:59",
      "action": "block_all",
      "created_at": "2026-03-09T12:00:00Z"
    }
  ]
}

Update a Profile¶

curl -X PUT http://localhost:8080/api/schedule-profiles/1 \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Kids School Night",
    "timezone": "America/Sao_Paulo",
    "comment": "Updated: stricter schedule"
  }'

Delete a Slot¶

curl -X DELETE http://localhost:8080/api/schedule-profiles/1/slots/2

Delete a Profile¶

Deleting a profile removes all its slots and group assignments:

curl -X DELETE http://localhost:8080/api/schedule-profiles/1

Check Group Assignment¶

# What schedule is assigned to group 2?
curl http://localhost:8080/api/groups/2/schedule

# Remove schedule from group
curl -X DELETE http://localhost:8080/api/groups/2/schedule

API Reference¶

Block Services¶

Method	Endpoint	Description
`GET`	`/api/services/catalog`	List all services (built-in + custom)
`GET`	`/api/services/catalog/{id}`	Get a single service definition
`GET`	`/api/services?group_id={id}`	List blocked services for a group
`GET`	`/api/services`	List all blocked services
`POST`	`/api/services`	Block a service for a group
`DELETE`	`/api/services/{service_id}/groups/{group_id}`	Unblock a service
`POST`	`/api/services/custom`	Create a custom service

Schedule Profiles¶

Method	Endpoint	Description
`GET`	`/api/schedule-profiles`	List all profiles
`POST`	`/api/schedule-profiles`	Create a profile
`GET`	`/api/schedule-profiles/{id}`	Get profile with time slots
`PUT`	`/api/schedule-profiles/{id}`	Update a profile
`DELETE`	`/api/schedule-profiles/{id}`	Delete profile (cascades)
`POST`	`/api/schedule-profiles/{id}/slots`	Add a time slot
`DELETE`	`/api/schedule-profiles/{id}/slots/{slot_id}`	Delete a time slot
`GET`	`/api/groups/{id}/schedule`	Get assigned profile for group
`PUT`	`/api/groups/{id}/schedule`	Assign profile to group
`DELETE`	`/api/groups/{id}/schedule`	Remove schedule from group
